Zero Hold Up Sparkler Filter Press

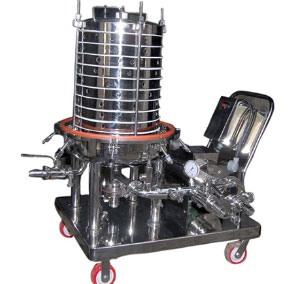

The sparkler filter press consists of an assembly of filter plates and filter cloth with perforated S.S. supporting screens enclosed in an S.S. shell. The assembly is equipped with a pump to pressurize the liquid through the stack of horizontally arranged filter plates.
The cartridge assembly is provided with central spacers between each of the plates. The interlocking between these spacers serves as a central pipeline, feeding equal quantities of unfiltered liquid to each of the plates. Solid particulates in the liquid get filtered and remain on the screen, allowing only the pure liquid to pass ahead. The filtered liquid is then collected at the bottom of the tank through holes provided on each of the plates.
The plate is manufactured in two parts which allows easy and effective removal of the cake.
Applications :
Salient Features :
- Meets GMP norms.
- Construction follows the latest standards & engineered to perfection.
- Available models – 8, 14 and 18 inches plate diameter.
- Available with centrifugal/ gear/ lobe roto pump.
- Fitted with pressure gauge, safety valve and airvent.
- Gives crystal clear filtration.
- All contact parts in SS 304/316/316L.
- High degree of finish to all Contact parts.
- Minimum hold up of unfiltered slurry, boost in productivity.
- MOC: Contact parts S.S. 316 & S.S. 316L and non-contact parts S.S. 304/M.S. (as per requirement).
- Gives crystal clear filtrate by filtering particles up to 1 micron size.
- Scavenger arrangement to remove all the liquid.
- Specially designed plate provides more filtration area and easy maintenance & cleaning of the equipment.
- Filtration rates from 600 Ltrs/hr. to 30000 Ltrs/hr possible depending on the models.
- Twin mode operation allows the equipment to be used for filtering and liquid transfer purposes.
- Pressure tight enclosures enable filtration of volatile liquids.
- Centrifugal/lobe/gear pump provided as per the needs of the application.
- FLP motor with FLP ON-OFF push button available for flame proof applications.
Available in wide range of sizes.
Operating Principle
The liquid to be filtered is passed to the central passage of the filter cartridge. From here it finds its way to the different filter plates on which suitable filter media is used.
As the liquid progresses through the filter plates and the screens, the filter media arrests the suspensions and allows the filtrate to the shell of the main body of the filtrate media. In some cases, the process requires the recovery of the cake. The same be collected from the top of the filter media.
The added feature of this filter is that it can be backwashed without dismantling the cartridge. In case the product is same, the filter-aid required after back washing is only marginal. Since the top dome is free from any piping connection, the removal of filter cartridge is very easy.
Technical Parameters
| Model | Plate Dia. | No of | Filtration area | Max cake holding capacity | Functional capacity | Flow rate | Pump Size | Motor Power |
|---|---|---|---|---|---|---|---|---|
| (inch) | plates | (sq. m) | (L) | (L) | (LPH) | (inch) | (HP) | |
| 8x3 | 8 | 3 | 0.127 | 2.92 | 2.12 | 300 | 0.6 | 1 |
| 8x6 | 8 | 6 | 0.223 | 5.11 | 3.71 | 525 | 0.5 | 1 |
| 8x8 | 8 | 8 | 0.2862 | 6.57 | 4.77 | 675 | 0.5 | 1 |
| 8x10 | 8 | 10 | 0.349 | 8.03 | 5.83 | 825 | 0.5 | 1 |
| 14x4 | 14 | 4 | 0.492 | 18.25 | 13.25 | 1000 | 1 | 2 |
| 14x6 | 14 | 6 | 0.6888 | 25.55 | 18.55 | 1400 | 1 | 2 |
| 14x8 | 14 | 8 | 0.8856 | 32.85 | 23.85 | 1800 | 1 | 2 |
| 14x10 | 14 | 10 | 1.0825 | 40.15 | 29.15 | 2200 | 1 | 2 |
| 18x8 | 18 | 8 | 1.4814 | 34.2 | 18.9 | 3100 | 1.5 | 3 |
| 18x10 | 18 | 10 | 1.8106 | 41.8 | 23.1 | 3740 | 1.5 | 3 |
| 18x15 | 18 | 15 | 2.6336 | 60.8 | 33.6 | 5440 | 1.5 | 3 |
| 18x20 | 18 | 20 | 3.4566 | 79.8 | 44.1 | 7140 | 1.5 | 3 |
| 18x23 | 18 | 23 | 3.9504 | 91.2 | 50.4 | 8160 | 1.5 | 3 |
